Product Details
＋

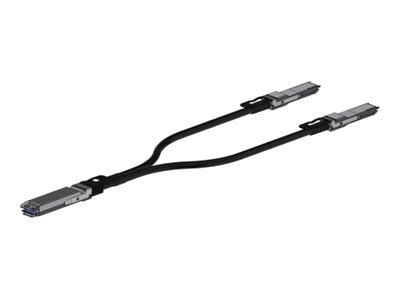

Mellanox - Network splitter - OSFP (M) to QSFP112 (M) - 3.3 ft - halogen-free
The 8-channel Twin port OSFP end uses a finned top form-factor for use in Quantum-2 and Spectrum-4 switch cages. The two 400G ends support 4-channels of 100G-PAM4 (400G) and use a flat top QSFP112 for use in ConnectX-7 adapters and BlueField-3 DPUs using riding heat sinks on the connector cage.
DAC cables are the lowest-cost, lowest-latency, near zero power consuming high-speed links available due to their simplicity of design and minimal components. The "passive" term refers to the copper cable containing no electronics in the data path. Each end includes an EEPROM which provides product identification and characteristics to the host system. Every cable length is tuned to reduce internal signal noise and back reflections.
Main use is linking an 800 Gb/s Quantum-2 switch or Spectrum-4 switch to QSFP112-based 400 Gb/s ConnectX-7 PCIe network adapters cards and BlueField-3 DPUs.
NVIDIA's cable solutions provide power-efficient connectivity enabling higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability.
- Halogen-free design
The Mellanox network splitter is designed with a focus on environmental sustainability, featuring a halogen-free cable that reduces toxic gas emissions in the event of a fire, making it a safer choice for your networking needs. - High compatibility
Featuring both OSFP and QSFP112 connectors, this network splitter offers high compatibility with existing network equipment, allowing for seamless integration into your data center without the need for additional adapters or changes. - Optimized signal integrity
With an American Wire Gauge (AWG) of 30 and an impedance of 100 ohm, the Mellanox network splitter ensures optimized signal integrity and performance for high-speed data transmissions, supporting the demands of modern data centers.
The 8-channel Twin port OSFP end uses a finned top form-factor for use in Quantum-2 and Spectrum-4 switch cages. The two 400G ends support 4-channels of 100G-PAM4 (400G) and use a flat top QSFP112 for use in ConnectX-7 adapters and BlueField-3 DPUs using riding heat sinks on the connector cage.
DAC cables are the lowest-cost, lowest-latency, near zero power consuming high-speed links available due to their simplicity of design and minimal components. The "passive" term refers to the copper cable containing no electronics in the data path. Each end includes an EEPROM which provides product identification and characteristics to the host system. Every cable length is tuned to reduce internal signal noise and back reflections.
Main use is linking an 800 Gb/s Quantum-2 switch or Spectrum-4 switch to QSFP112-based 400 Gb/s ConnectX-7 PCIe network adapters cards and BlueField-3 DPUs.
NVIDIA's cable solutions provide power-efficient connectivity enabling higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability.
- Hot-pluggable feature allows for easy installation and maintenance
- Low Smoke Zero Halogen (LSZH) jacket material ensures safer cabling solutions
- Supports a wide operating temperature range from 0°C to 70°C
- Complies with multiple standards including RoHS, FCC, and EMC for global acceptance
