Geist Switched Unit Level Monitoring MNS5MGB1-24CF18-3TL6A0A10-S - Power distribution unit (rack-mountable) - AC 208 V - 4.9 kW - RS-232, USB, Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 24 (IEC 60320 C13/C19) - 0U - 10 ft cord - black powder coat - TAA Compliant

• Efficient power distribution
  The Vertiv Geist Switched Unit Level Monitoring power distribution unit ensures efficient distribution of power with a capacity of 4.9 kW, supported by 24 power IEC 60320 C13/C19 output connectors. This setup is designed to meet the high demands of data centers, ensuring that your equipment receives stable and reliable power.
• Advanced remote management
  Equipped with Ethernet 10/100/1000, RS-232, and USB interfaces for remote management, this unit supports a wide range of protocols including DHCP, HTTP/S, IPv4/6, SNMP 1/2c/3, and more. This allows for comprehensive monitoring and management of the power distribution unit from any location, enhancing the operational efficiency of your IT infrastructure.
• Comprehensive circuit protection
  Featuring 2 x 20 A double pole magnetic breakers and a circuit/breaker current monitoring system, the unit provides robust protection against overloads. This ensures the safety and longevity of connected devices, minimizing downtime and maintenance costs.
• User-friendly interface
  The LED display, combined with a scrolling/rotatable digital display, offers an intuitive interface for monitoring the status of the power distribution unit. The inclusion of an IP reset button, hard reboot button, and breaker/switch combination enhances user control and simplifies maintenance tasks.

The Vertiv Geist Switched RPDU VP5N30AP is a 30A, 208V, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (24) Combination C13/C19 receptacles and a NEMA L6-30P plug providing 4.9kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.

• Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
• VP5N30AP is a 30A, 208V, rack PDU with (24) Combination C13/C19 receptacles and a NEMA L6-30P plug

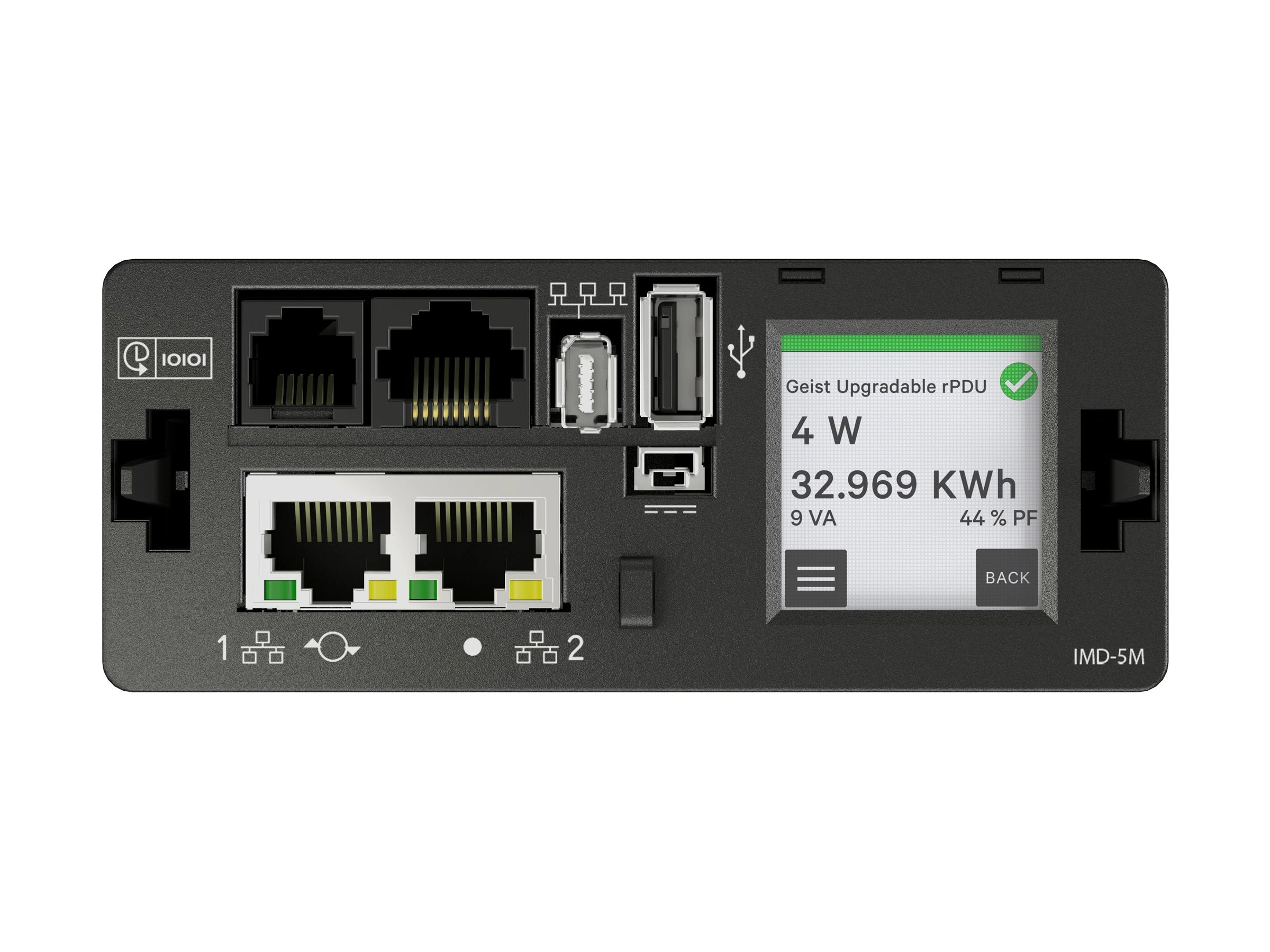

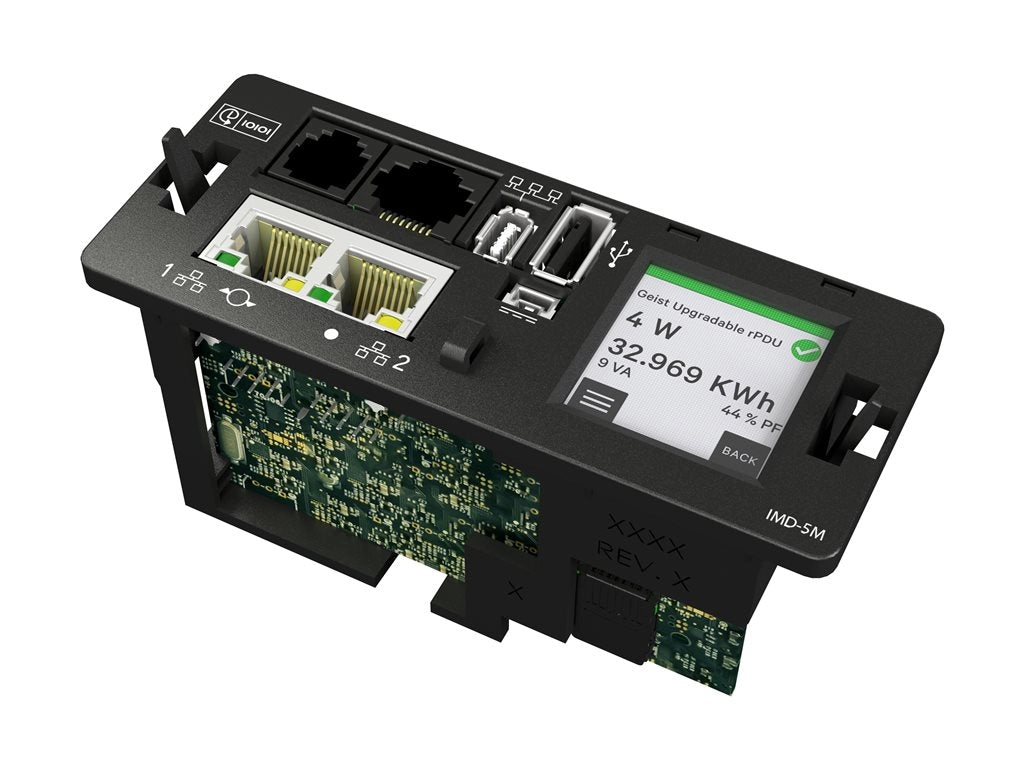

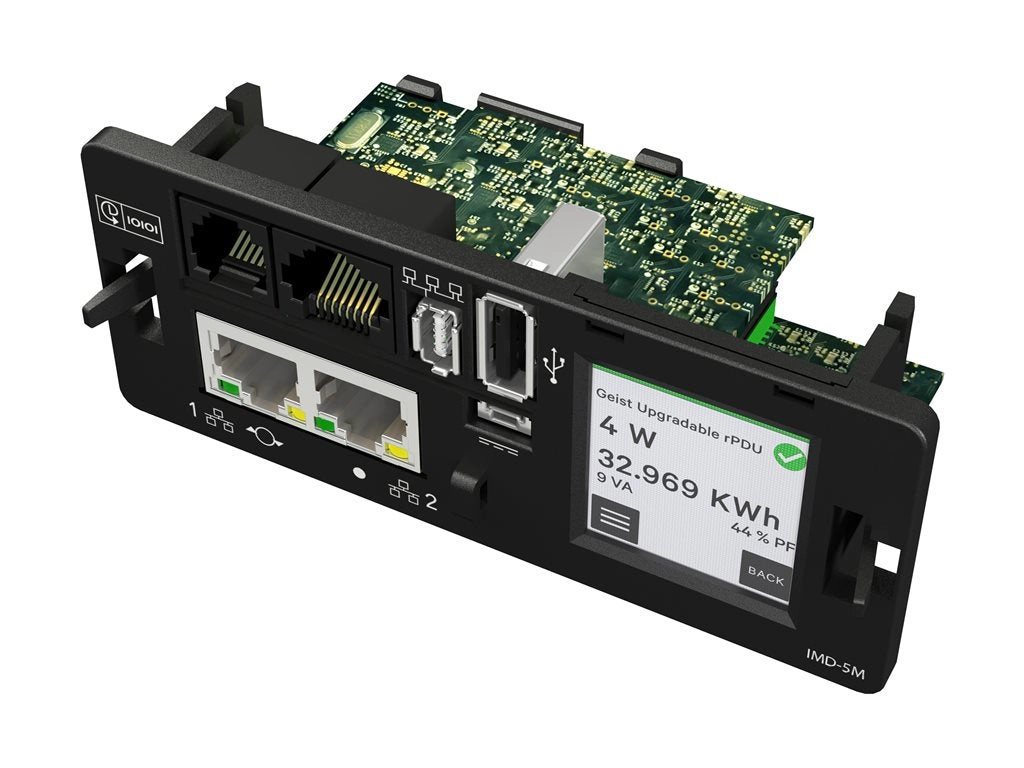

• Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
• Helps ensure that data and operations are protected with the enhanced security features
• Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
