MEET THE BIKE IN BETWEEN NOTHING. LEAVING NO RIDER WANTING. MASTER OF THE CLIMB, THE BOMB, THE RAIL AND THE AIR. THE UTTERLY UNEQUIVOCAL. THE RULE CRUSHER. THE TREND BUSTER. NO RIG CAN RULE ALL, BUT THIS ONE CAN ABSOLUTELY RULE.
THE MOUNTAIN BIKE.
TRAIL BIKE? YES, AND...
This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. "Trail Bike" is a term that gets used pretty liberally in the industry, so they designed the SB140 to be even better suited to go deep and found out what's on the other side.
FRAME HIGHLIGHTS
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Compact-wishbone shock extender
- Boost spacing
- Sizes S-XXL
Specifications:
FRAME HIGHLIGHTS
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Compact-wishbone shock extender
- Boost spacing
- Sizes S-XXL

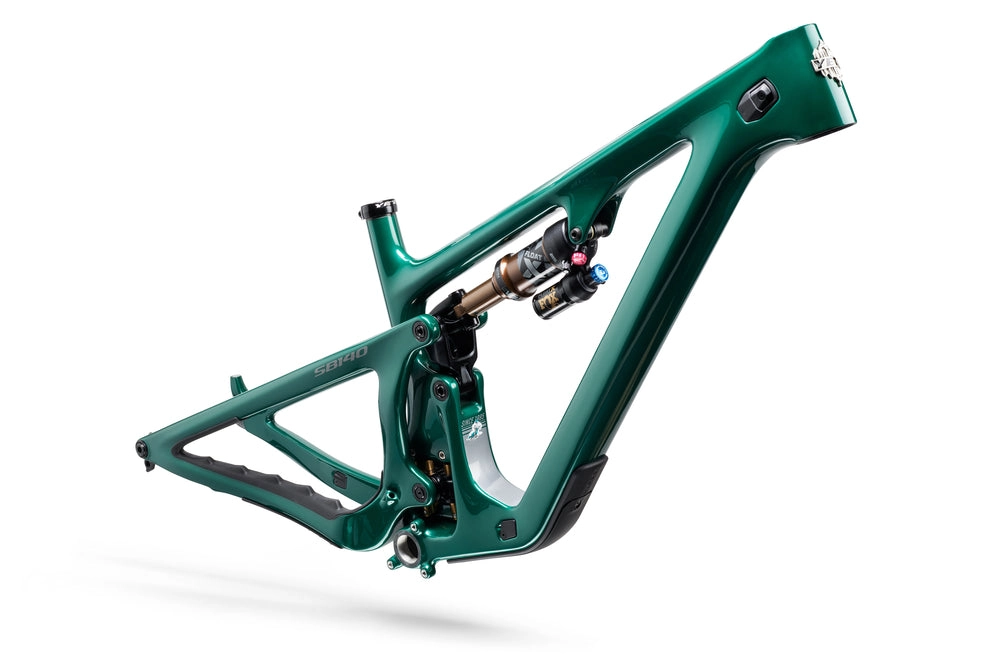

FRAME: TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
FRAME TRAVEL: 140MM
FORK TRAVEL: 150MM
LEVERAGE RATE: 14%
WHEEL SIZE: 29"
HEAD TUBE ANGLE: 65.4º
EFFECTIVE SEAT: 77.5º

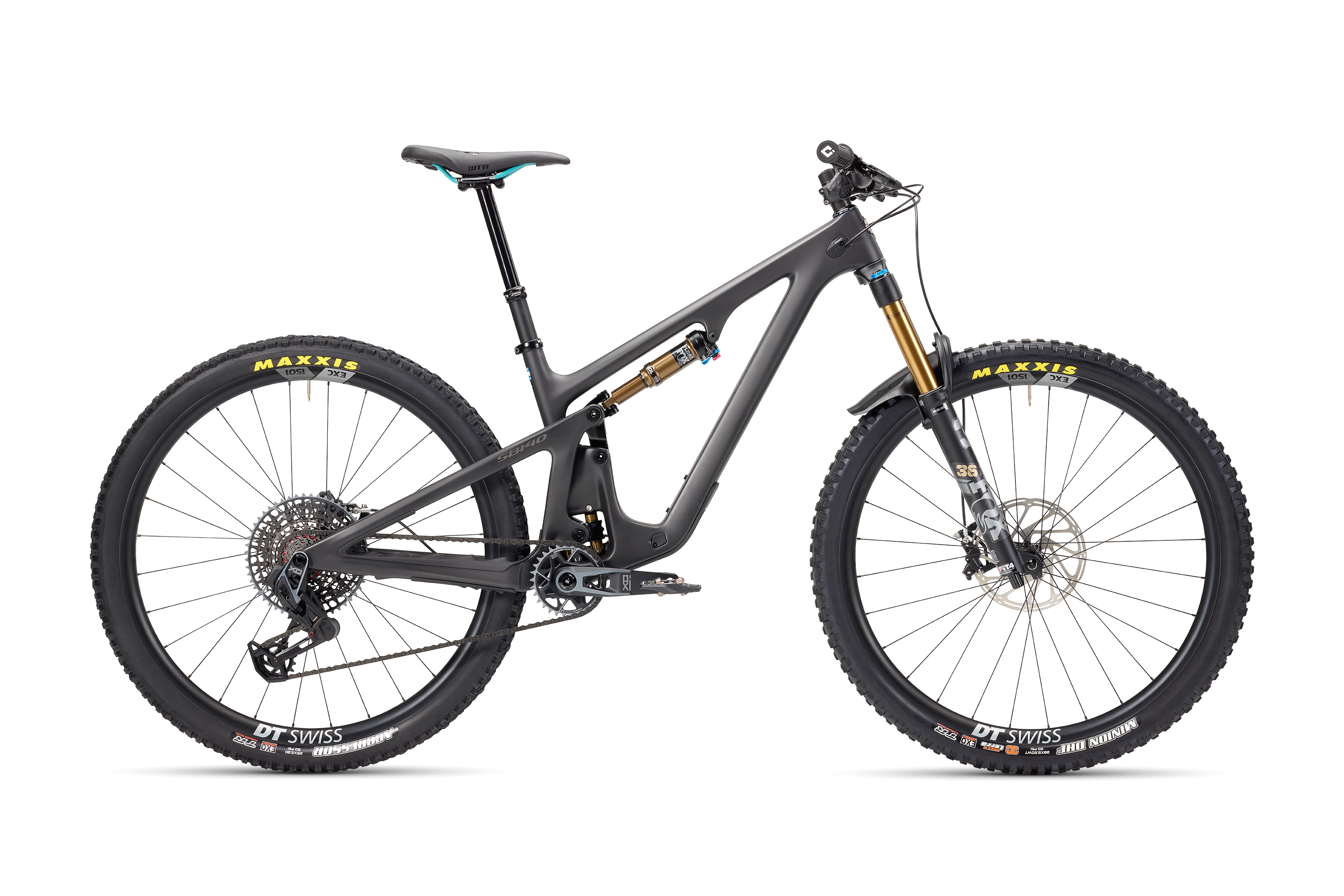

Build Kit:
| DETAILS | TURQ Carbon Frame, 150mm Fox Factory 36 FIT 4 and Float DPS, SRAM X0 T-Type and G2 RSC Brakes |
| FRAME | TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. |
| FORK | FOX FACTORY 36 FIT 4/150MM |
| MATERIAL | TURQ SERIES |
| WEIGHT | 30.05 |
| TRAVEL | 140MM (5.5") |
| REAR SHOCK | FOX FACTORY FLOAT DPS |
| WHEELSET | RACEFACE ARC OFFSET 30MM/DT SWISS 350UPGRADABLE |
| REAR DER | SRAM X0 EAGLE AXS TRANSMISSION |
| SHIFT | SRAM AXS POD CONTROLLER |
| CRANK | SRAM X0 EAGLE TRANSMISSION 30T 170MM |
| BB | SRAM DUB BSA 73 |
| CASSETTE | SRAM X0 EAGLE TRANSMISSION 10-52 |
| CHAIN | SRAM X0 EAGLE TRANSMISSION FLATTOP |
| BRAKES | SRAM G2 RSC |
| ROTORS | SRAM CENTERLINE 200/SRAM CENTERLINE 180 |
| POST | FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM |
| FRONT TIRE | MAXXIS MINION DHF 2.5 EXO |
| REAR TIRE | MAXXIS AGGRESSOR 2.3 EXO |
| HEADSET | CANE CREEK 40 INTEGRATED |
| BAR | YETI CARBON 35X780MM |
| STEM | BURGTEC ENDURO MK3 35X50MM |
| GRIPS | ODI ELITE PRO |
| SEAT | SILVERADO CUSTOM |
| UPGRADES | DT Swiss EXC 1501 Carbon Wheelset |
